Cooling Units

Thermal Protection for Critical Electronics

Pfannenberg Cooling Units, as a closed-loop cooling system, prevent critical temperature fluctuations and avoid overheating. The units effectively seal out ambient air, ensuring that clean, cool air is recirculated throughout the enclosure. These units are necessary when cooling cannot be achieved with outside air, when the required internal temperature is equal to or lower than the ambient temperature, when the ambient air is heavily contaminated with oil or conductive dust, or when higher ingress protection is needed.

Types of Cooling Units

DTS 3000 Series: side mounted units meet the demands of the North American NEMA market. These units meet the needs for indoor NEMA Type 12 applications, NEMA Type 3R/4 outdoor applications and NEMA Type 4/4x stainless steel for washdown applications.

Green Series DTI/DTS 6001:  allows for European style recessed mounting on enclosure doors and/or side panels on modular systems. These units provide energy efficient performance to reduce energy costs and environmental impact. The “click & fit” design of the units reduces installation times by more than 90%.

X-Series DTI/DTS 6XxE: allows for European style recessed mounting on enclosure doors and/or side panels on modular systems. These units utilize inverter technology to provide flexibility and precise cooling to the enclosure while reducing energy consumption. These “click & fit” units reduce installation times by more than 90%.

Hybrid DHS 34X1 Series: side mounted units that combine active and passive cooling to deliver high-efficiency performance with impressive energy savings, easy installation, and a commitment to sustainability while providing redundancy. These cooling units are ideal for environments where the temperature is variable with lower ambient temperatures, climate-controlled facilities, and operations that run at partial capacity for periods of the day.

DTT 6000 Series: Top Mount Cooling Units offer unique protection through our innovative, patented condensate management system. These units can be safely installed above critical components with peace of mind.

Quick Selection Table to guide you to the product series that may meet your current requirements.

FeatureDTS 3000DTI 6000
Green Series
DTI/DTS 6XxE
X-Series
DTT 6000DHS 34x1
Hybrid Series
Cooling CapacityBtu/h900-240003000-136503000-153501200-140005000-7000
NEMA RatingIndoor (NEMA 12)xxxxx
Outdoor (NEMA 3R)xx
Washdown (NEMA 4/4x)xx
Voltage115Vxxxx
230Vxxxx
460Vxxxxx
Mounting StyleSide Mountxx x
Door Mount xxx***
Recessedxx
Top Mountx
Cabinet Width fits < 16in> 16in> 16in16 to 24in< 16in
CertifcationsUL, cUL, CEUL 60335, CEUR, CEUR, CEUL 60335, CE
External Displayx*xx*x
Connectivity AvailableModbus RTUOptional
Cooling TechnologyCompressorCompressorPrecise
Inverter Technology
CompressorHybrid
Energy Efficiency
Ambient Temperature Profile95˚FOperating Time95˚FOperating Time95˚FOperating Time95˚FOperating Time95˚FOperating Time

Footnote
*available as option.
**runtime equates to demand for cooling per day.
***contact us for door mount options.

Cooling Unit Product Series

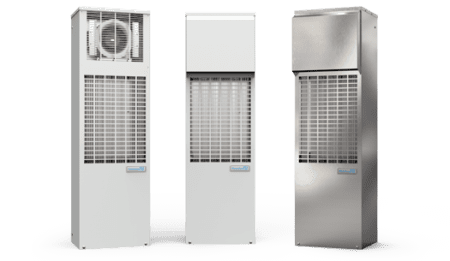

DTS 3000 SERIES

900 – 24000 Btu/h
Side Mount Cooling Units.

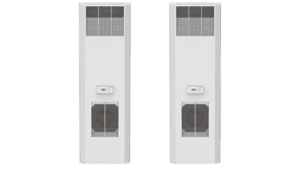

GREEN SERIES
DTS/DTI 6000
DTI-6201-6801 Integrated Cooling units

3000 – 14000 Btu/h
Recessed and Side Mount Cooling Units.

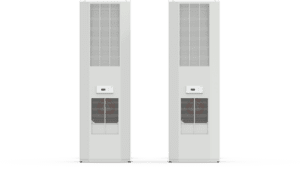

X-SERIES
DTS/DTI 6XxE

3000 – 15350 Btu/h
Recessed and Side Mount Cooling Units.

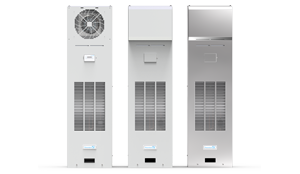

HYBRID SERIES
DHS 34X1

5000 – 7000 Btu/h
Side Mount Cooling Units.

TOP MOUNT
DTT 6000 SERIES

DTT Top Mounted Cooling Unit

1200 – 14000 Btu/h
Top Mount Units.
