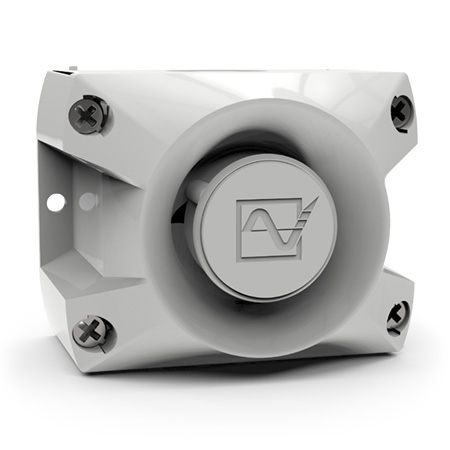

PATROL Range of Alarm Sounders

Plastic Housing – UL Certified – Type 4/4x – IP 66

Pfannenberg PATROL Industrial alarms meet the requirements of IP rating protection as well as having an impact-proof housing. In addition, the base connection terminals, nondetachable seals and quick locking elements greatly facilitate easy mounting.

PATROL range of audible alarms offer extensive certifications including UL, GL and CE in support of worldwide requirements. They also include a standard 10-Year Warranty, guaranteed to protect man, machine and the environment.

PATROL Sounders Features:

80 pre-programmed tones, up to 4 different events
Superior sound penetration and coverage
Operates in harsh environments
Fast, easy and safe to install (surface or flush-mounted)

PA 1 R
105 dB, 70 tones, 4 stages

PA 1
105 dB, 80 tones, 4 stages

PA 5
107 dB, 80 tones, 4 stages

PA 10
117 dB, 80 tones, 4 stages

PA 20
120 dB, 80 tones, 4 stages

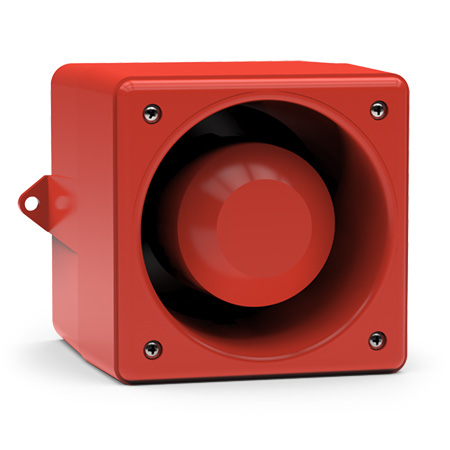

DS Range of Heavy Duty Sounders

Cast Aluminium Housing – UL Listed – IP 66/IP 67

The sounders from the DS 10 / DS 5 series can be used for tough demands under industrial conditions and as universal alarms. The sounders, which are suitable for use both indoors and outdoors, generate warning signals in 31 different tones can be selected with the aid of an internal switch. Optionally, a maximum of 3 additional tones can be switched to by means of an external controller.

In addition to the factory settings, the tone combination can be individually selected by means of on-site programming (tone 32). Custom versions are available for special applications.

DS range of audible alarms offer extensive certifications. They also include a standard 10-Year Warranty, guaranteed to protect man, machine and the environment.

DS 5
108 dB, 31 tones, 4 stages

DS 10
114 dB, 31 tones, 4 stages

PATROL Range of Alarm Sounders

Plastic Housing – UL Certified – Type 4/4x – IP 66

DS Range of Heavy Duty Sounders

Cast Aluminium Housing – UL Listed – IP 66/IP 67
