PFA 10000
EXHAUST FILTERS

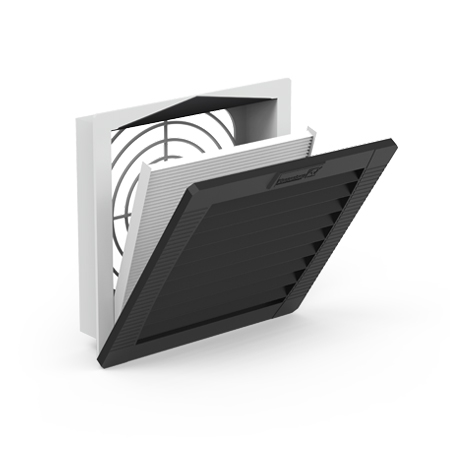

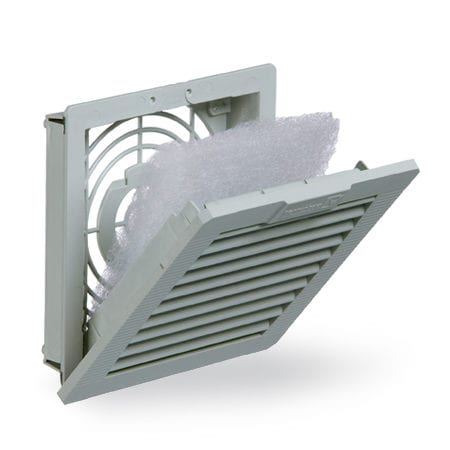

Our PFA 10000 (NEMA Type 12) Exhaust Filters provide an IP 55, Type 12 system of protection. Exhaust Filters come with integrated foam seal to enclosure and are easy to install thanks to their snap fastener developed and patented by Pfannenberg. Color: RAL 7035 (light grey); also available in RAL 9011 (black)
Features
NEMA Type 12 Protection
The closed frame design prevents unfiltered air from penetrating the cabinet.
Patented Tool-Less 4 Corner Fastening System
The patented fastening system allows for fast installation (possible to install in seconds) and easy removal reducing MTTR.
Highest System Airflow Compared to Competitors Filter Fans
The design of the louvers supports the greatest airflow while further protecting against airborne dust and dirt.
Globally Compatible
ERP compliant to meet European efficiency directives. Units also comply with additional national and international standards, e.g. TÜV, NEMA, UL, CSA and EAC.
Versatile Options
Options including UV Protected Plastic for use in direct sunlight, EMC shielding to attenuate RF signals and exhausting fans for custom applications.
Aesthetically Pleasing Design Using Neutral Colors
Available in a standard RAL 7035 Grey or RAL 9011 Black. These units blend in well with the modern styles and colors used for existing machines and systems.
Technical Data Overview
| PFA 10000 EXHAUST FILTERS | ||
|---|---|---|
| COLOR | RAL 7035 (Lt. Grey) | RAL 9011 (Black) |
| PART NUMBER | 11710001055 | 11710001050 |
| DESIGN (housing and protection against accidental contact) | made of injection-molded thermoplastic, self-extinguishing, UL 94 VO | |
| APPROVALS | UL, cUL, CE, (on request: GOST) | |
| CUT OUT DIMENSIONS (mm) | 92 x 92 | |
| W x H x D (in) | 4.29 x 4.29 x .90 | |
| SYSTEM OF PROTECTION (EN 60529) | IP 54 | |
| System of protection (UL 50) | NEMA Type 12 | |
| FILTER MAT QUALITY CLASS | G 3 | |
Datasheets & Downloads
| MANUAL |
| ||
| DRAWINGS | |||
| MODEL |
Subject to technical amendments and misprints.
