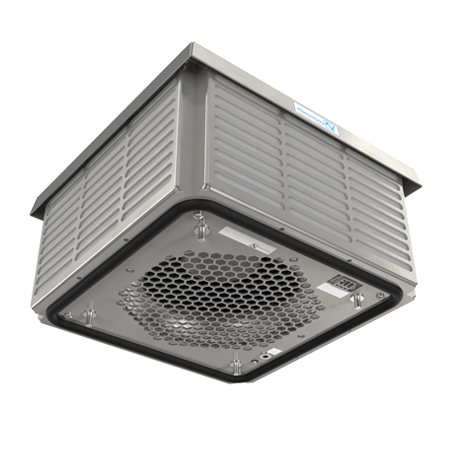

PTF 1200 3R
TOP MOUNT Filterfan®
Airflow rate up to 589 CFM
The latest addition to the industry leading Filterfan family, the Outdoor rated PTF 1200 Top Mount Filterfan®. It is the only certified TYPE 3R top mount fan available on the market providing electrical enclosures with protection against ingress of falling dirt, harmful effects of rain, sleet, snow and external ice formation. The fan is a cutting-edge filter fan engineered to address the escalating cooling demands arising from increased electronic enclosure density and power electronics requirements. The PTF 1200 offers over 30% more airflow over its nearest counterpart in the market, making it the perfect solution between traditional passive cooling and active cooling. Color: Stainless Steel
Features
Highest Airflow Rate
Over 30% more airflow than any filter fan in the market pulling more hot air from the enclosure to reach the optimal temperature. The PTF 1200 product kit is equivalent to a 3000 BTU air conditioner with a 5.6º F temperature difference.
NEMA Type 3R Protection
The design provides protection against ingress of falling dirt, harmful effects of rain, sleet, snow and external ice formation.
Energy Efficient Fan
The highly efficient EC centrifugal fan uses precise control of the fan speed to reduce energy consumption.
Robust Stainless Steel Housing
The stainless steel 304 housing is durable and robust.
Easy to Change Filters
The top plate removes by undoing four screws and filter media slides out.
Space Saving Design
Designed for use in crowded enclosures. This solution has no intrusion into the cabinet.
Long Service Life
The EC fan with advanced motor technology reduces mechanical stress providing over 25% longer service life than standard axial fans.
Easy to Ship
The rugged design makes standard parcel shipping possible.
Technical Data Overview
| PTF 1200 TOP MOUNT FILTERFAN® | ||
|---|---|---|
| AVAILABLE VOLTAGES ± 10% | 115 V | 230 V |
| PART NUMBER | 11692152120 | 11692102121 |
| DESIGN (housing and protection against accidental contact) | 304 stainless steel. Screw mounting on the enclosure roof. | |
| SERVICE LIFE L10 (+ 40 °C) | approx. 70,000 h | |
| WEIGHT (lb) | 14.4 | |
| COLOR | Stainless steel | |
| NOISE LEVEL (EN ISO 3741) | 74 dB (A) | |
| CONNECTION TYPE | X-COM plug | |
| BEARING TYPE | ball bearing | |
| APPROVALS | UL, cUL, CE, (on request: GOST) | |
| POWER CONSUMPTION (W) | 170 W | 170 W |
| CUT OUT DIMENSIONS (mm) | 229 X 229 - see Manual | |
| W x H x D (in) | 11.81 x 11.81 x 6.1 | |
| System of protection (UL 50) | IP 54 / NEMA Type 3R | |
| FILTER MAT QUALITY CLASS | G 4 | |
| UNIMPEDED AIRFLOW | 589 CFM | |
| AIRFLOW RATE IN COMBINATION (PTF+ 2 PFA 60000) | 512 CFM | |
| FILTRATION EFFIICIENCY | 81% | |
Datasheets & Downloads
| MANUAL | ||
| DATA SHEET | ||
| CUT OUT | ||
| DRAWINGS | ||
| MODELS |
Accessories Kits
| PTF 1200 3R SERIES ACCESSORIES KITS | ||
|---|---|---|
| Spare Filter Mat | 20 pieces spare filters | 18611600193 |
| FLZ 530 Thermostat | Thermostat | 17121000010 |
| FLZ 600 Hygrostat 40-90% rh DT | Hygrostat | 17207000000 |
| PFA 60000 R Exhaust Filter | Inlet Filter (2x Need per One PTF 1200) | 11760003115 |
| Power Cord | Plug and Cord Whip | 18125401412 |
