Datawind PF 22000
Externally Mounted Filterfans®
Airflow rate up to 38 CFM

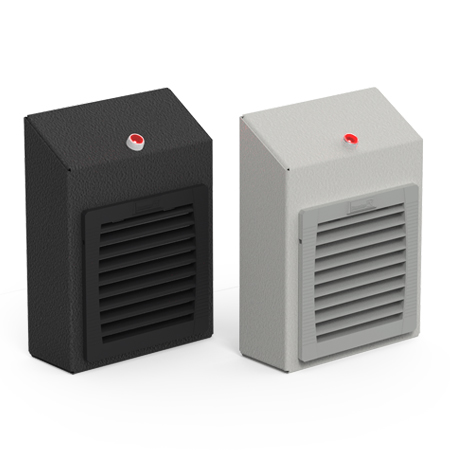

Our Datawind PF 22000 (NEMA Type 12) Filterfan® is externally mounted which makes it the ideal solution for space restricted installations such as IT equipment Racks. This product reach a particularly high airflow and at the same time provide an IP 55, Type 12 system of protection with our flow optimized fins and rotor blades. Color: RAL 9003 (white); also available in RAL 9004 (black)
Features
Perfect Design for IT Racks
This new Datawind Filterfan® protects your IT equipment in much dirtier manufacturing environments without sacrificing critical rack space.
30° Slope Top
Designed to avoid dust collection and improve safety.
Maintenance Indication LED Light
LED indicator to warn when the temperature exceeds the desired temperature inside the cabinet. Indication of fan malfunction or clogged filter.
Zero protrusion into the enclosure
Externally mounted, allowing for full use of all racks within the bays.
NEMA Type 12 Protection
The closed frame design prevents unfiltered air from penetrating the cabinet.
Filterfan 4.0™ Benefits
Design based on the Filterfan 4.0™ line to provide the same airflow as standard Filterfans® using a fluted filter mat with a 3x longer service life. The Datawind Filterfan® is also designed to be used with our existing PFA exhaust filters.
Fits existing Filterfan® cutout
Only need to drill mounting holes with power tools. Pre-existing 2.5” hole cut to allow pass through wiring.
Versatile Options
Available in Black (RAL 9004) and White (RAL 9003). 115v and 230v options also available with three unimpeded airflow ratings (38, 152, and 560 CFM).
IEC Power Connector 6ft cable
Located on center of fan to allow door to hinge in both directions. Fan side – IEC C13 plug with lock mechanism. Power side – NEMA 5-15P (115v) and IEC C14 (230v)
Cable to adjustable thermostat
13ft length cable to an adjustable thermostat with DIN mount bracket to allow fan to toggle on/off depending on cooling need. This feature extends both fan and filter lives.
Technical Data Overview
| Datawind PF 22000 FILTERFANS® | |||
|---|---|---|---|
| AVAILABLE VOLTAGES ± 10% | 115 V | 230 V | |
| PART NUMBER RAL 9003 (white) | 18182000039 | 18182000041 | |
| PART NUMBER RAL 9004 (black) | 18182000040 | 18182000042 | |
| DESIGN (housing and protection against accidental contact) | self-extinguishing, UL 94 VO injection-molded thermoplastic | ||
| SERVICE LIFE L10 (+ 40 °C) | 40,000 h | 37,500 h | |
| WEIGHT (lb) | 5 | ||
| COLOR | RAL 9003 (White) RAL 9004 (Black) | ||
| NOISE LEVEL (EN ISO 3741) | 44 dB (A) | ||
| CONNECTION TYPE | 6 FT Prewired Cable IEC C-13 to NEMA 5-15P | 6 FT Prewired Cable IEC C-13 to IEC C-14 | |
| BEARING TYPE | sleeve bearing | sleeve bearing | |
| APPROVALS | UL, CE | ||
| POWER CONSUMPTION (W) | 20 | 18 | |
| H x W x D (in) | 9.4 x 6.8 x 2.8 | ||
| CUT-OUT DIMENSIONS (mm) | N/A | ||
| SYSTEM OF PROTECTION (EN 60529) | IP 55 | ||
| System of protection (UL 50) | NEMA Type 12 - fluted filter | ||
| FILTER MAT QUALITY CLASS | G 4 | ||
| UNIMPEDED AIRFLOW | 38 CFM | ||
| AIRFLOW RATE IN COMBINATION (PF + PFA 20.000) | 28 CFM | ||
| FILTRATION EFFIICIENCY | 91% | ||
| FILTER MEDIA | |||
| Used With PF 22000, PFA 20000 | Part No. | Description | Size |
| 18611600034 | PF/PFA 2xxxx - 5 Pack | 4.57 in X 4.25 in X .67 in (116mm X 108mm X 17mm) |
|
Datasheets & Downloads
| MANUAL | |||
| CUTOUT | |||
| DRAWINGS | |||
| MODEL |
Subject to technical amendments and misprints.
