PY L-MA-RGB
PYRA® Color Changing LED with 101 dB Sounder
Our PY L-MA-RGB (UL Type 4x, IP 66) offers the most flexible, ultra bright color changing LED technology with selectable signaling modes (continuous, blinking, flashing) and selectable colors (4 total) combined with a 101 dB omnidirectional sounder. This Signaling Device offers a 180° x 360° visible field and operates in any climate. It can be surface or top or wall mounted. This product can be used as a replacement to stack tower lights, easy to install. Color: Available in Grey Housing. 10-Year Warranty
Product Overview
- 101 dB Sounder
- Multiple Colors with one LED Light
- Multiple Signaling Modes: Continuous, Blinking and Flashing
- Adjustable Brightness
- Wide Temperature Range: -40°F to 131°F
- Flame-Retardant Plastic Housing
- Audible Sounder Option
- UL Certification
- 4 Pin M-12 Optional Connector Available
Additional voltages, lens and base colors available. Please click here to contact us for additional options.
Features
Multifunctional Signaling modes
No matter which signaling mode is required – you are able to choose the one that fits to your needs: Continuous (permanent warning or indication), Blinking (highly efficient for permanent warning), Flashing (higher perceptibility in alarm conditions)
Selectable Color (RGB Version Only)

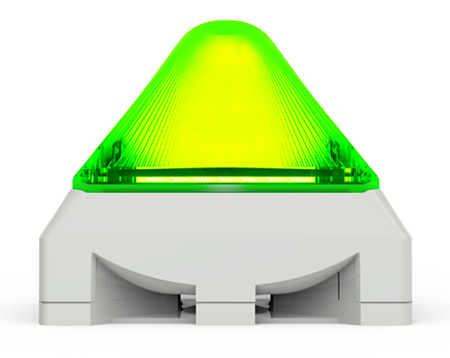

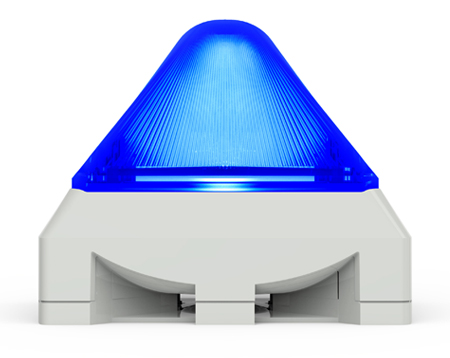

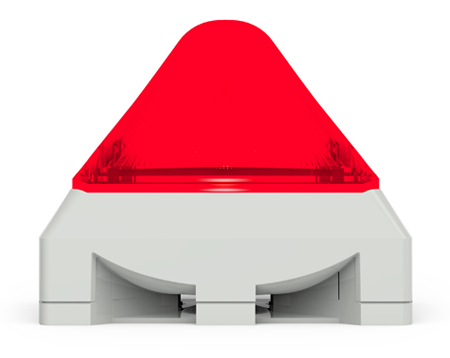

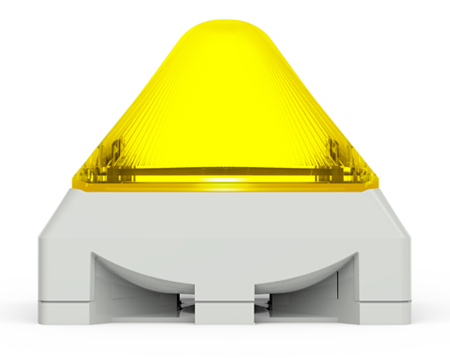

The updated PYRA LED series can now show three out of four available colors – red, yellow, green, and blue.
Large Area Audible Signal
Integrated into this combination device is a 101 dB sounder, which is designed to disperse the sound in an axial path surrounding the device. Perfect for machine or wall mounting application.
Multi-Voltage-Power Supply
Plug and play – made to connect with different voltages. No need to stock various units – PYRA® LED adapts to most machines and applications no matter the voltage!
M12 Connection
A true plug and play visual signaling device. Plug your light into a 4 pin-M12 connector and you will get Green(Steady-On), Yellow(Blinking, and Red(Flashing) with 101dB sounder. 10-60VDC only.
Panel Mount Installation
360° Visibility – Integrate into the design of your machine and equipment. The pyramid shaped lens providing 360 degree visibility and ideal radiation characteristics that ensures all-round visibility.
Single 1-Color LED
Available upon request. Please contact your sales representative for details.
IP 66 Enclosure Rating
Suitable for use in all weather conditions due to the provided protection against driving rain, snow, ice, and dust. Withstands hose-directed spray during wash-down requirements.
Technical Data Overview
| PYRA SERIES LED SOUNDER/LIGHT COMBINATION | 115 VAC | 10-60 V DC |
|---|---|---|
| PART NUMBER GREY HOUSING (RAL 7035) | 21556648055 | 21556818055 |
| PART NUMBER GREY HOUSING RGB (RAL 7035) With M12 Connector | N/A | 21556818101 |
| MAX SOUND LEVEL | 101dB (A) @ 1m | |
| VOLUME CONTROL | max. -20 dB | |
| TONES | 8 | |
| LIGHT SOURCE | 4 different LED colors through external control | |
| LIGHT INTENSITY (DIN 5037) | 23 cd (reducible) | |
| MAX VIEWING DISTANCE | 101 m | |
| OPERATING TEMPERATURE | -40 ... +55 °C | |
| PROTECTION SYSTEM (According to EN 60529) | IP 66 (EN 60529), NEMA TYPE 4/4x, IK 08 (EN 50102) | |
| SERVICE LIFE OF LIGHT SOURCE | > 50,000 hours | |
| CABLE ENTRY | 6x M20 pre-embossed | |
| CONNECTING TERMINAL | 0.14 - 2.5 mm² fine stranded | |
| WEIGHT | Max. 670 g | |
| W x H x D (mm) | 166 x 134 x 114 | |
Datasheets & Downloads
| MANUAL | ||
| DATA SHEET | ||
| MODEL | ||
| GUIDE SPECS | ||
Certifications
Subject to technical amendments and misprints.
