PA X 1-05

PATROL Series Flashing Sounders

105 dB (A) with 5 Joules Flash

Our PA X 1-05 (UL Type 4/4x, IP 66) PATROL Series Flashing Sounders reach a 105 dB (A) nominal sound pressure Level with 5 Joules Flash and offers 80 alarm tones – based on alarm circumstance – with 4 stages. This Signaling Device operates in any climate and can be surface or flush-panel mounted. Color: Available in Grey or Red Housing. 10-Year Warranty

Product Overview

105 dB (A) nominal sound pressure level
1 Hz single flash xenon strobe light, 5 Joules
80 alarm tones with 4 stages
Emit different tones based on alarm circumstances
Internal volume control
Polycarbonate/ABS blend housing
UL Type 4/4X, IP 66 ingress protection
6.8 inch (172 mm) h x 4.3 inch (110 mm) w x 3.2 inch (81 mm) d
Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3

Additional voltages, lens and base colors available. Please click here to contact us for additional options.

Features

Captive Fastener

Installation and assembly is simplified and screws cannot get lost.

Impact-proof housing

Achieves IK08 impact rating to endure harsh environments.

Shape-molded gasket

Stays in-place and cannot get lost.

Plug and socket connections

Upper and lower parts combine positively to simplify installation. When separated, electrical hazards are eliminated for handling.

Selectable audible notification

Choice of 80 unique alarm tones with four stages of tone control for distinctive signaling of specific events.

Technical Data Overview

PATROL SERIES FLASHING SOUNDERS PA X 1-05	18 to 30 VDC	90 to 135 VAC

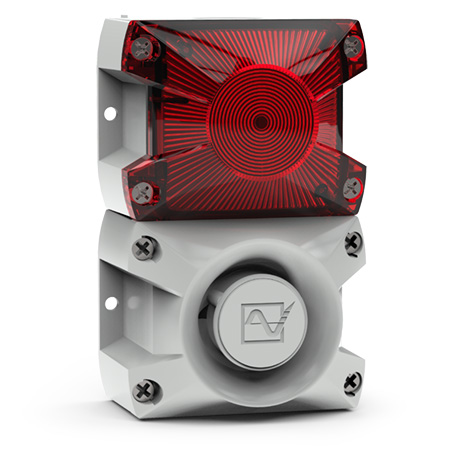

PART NUMBER GREY HOUSING (RAL 7035) RED LENS	-	23311155055

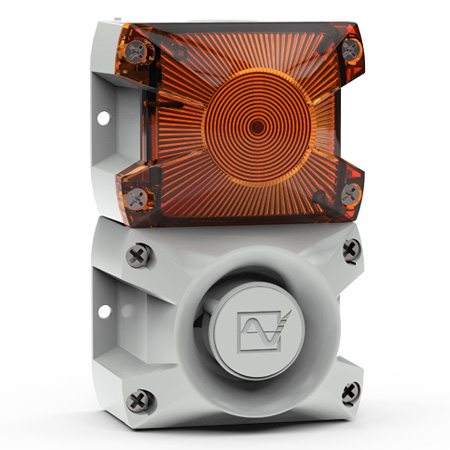

PART NUMBER GREY HOUSING (RAL 7035) AMBER LENS	23311804055	-
PART NUMBER GREY HOUSING (RAL 7035) BLUE LENS	23311807055	-

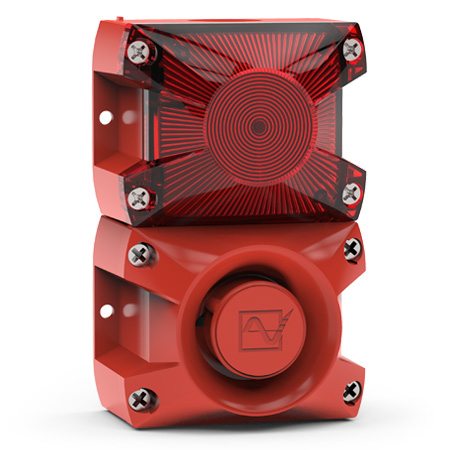

PART NUMBER RED HOUSING (RAL 3000) RED LENS	23311805000	-
NOMINAL CURRENT CONSUMPTION	860-920 mA @ 24 V	65-70 mA @ 230 V
SOUND PRESSURE LEVEL	105 dB (A)
SOUND LEVEL REDUCTION	max. -16 dB via potentiometer
ALARM TONES	80 / 4 tones are externally selectable
FLASH ENERGY AND FLASH RATE	5 J @ 1 Hz = 60 flashes/min
MAX VIEWING DISTANCE	164 m
OPERATING TEMPERATURE	-40 ... +55 °C
PROTECTION SYSTEM (According to EN 60529)	IP 66
W x H x D (mm)	109.5 x 172.4 x 80.6
