PA 1

PATROL Series Sounders

105 dB (A) – 80 Tones – 4 Stages

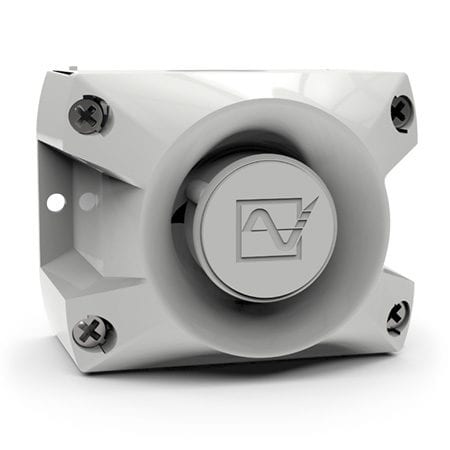

Our PA 1 (UL Type 4/4x, IP 66) PATROL Series Sounders reach a 105 dB (A) nominal sound pressure Level and offers 80 alarm tones – based on alarm circumstance – with 4 stages. This Signaling Device operates in any climate and can be surface or flush-panel mounted. Color: Available in Grey or Red Housing. 10-Year Warranty

Product Overview

105 dB (A) nominal sound pressure level
80 alarm tones with 4 stages
Emit different tones based on alarm circumstances
Internal volume control
Polycarbonate/ABS blend housing
UL Type 4/4X, IP 66 ingress protection
3.4 inch (86 mm) h x 4.3 inch (110 mm) w x 3.2 inch (81 mm) d
Certifications: UL, cUL, MED, CE, VdS, GL, EN 54-3
4 Pin M-12 Optional Connector Available

Additional voltages and colors available. Please click here to contact us for additional options

Features

Captive Fastener

Installation and assembly is simplified and screws cannot get lost.

Impact-proof housing

Achieves IK08 impact rating to endure harsh environments.

Shape-molded gasket

Stays in-place and cannot get lost.

Selectable audible notification

Choice of 80 unique alarm tones with four stages of tone control for distinctive signaling of specific events.

Electromagnetic sound capsule technology

Acoustic signal includes a share of low frequency side bands for excellent sound penetration of walls and doors for highly effective alarming.

Intelligent Installation

Electrical wiring is conducted in the base box to avoid a 3-hand assembly. Wires are safely routed where the potential for pinching and errors are eliminated.

Plug and socket connections

Upper and lower parts combine positively to simplify installation. When separated, electrical hazards are eliminated for handling.

Technical Data Overview

PATROL SERIES SOUNDERS PA 1	10 to 57 VDC	95 to 127 VAC
PART NUMBER GREY HOUSING (RAL 7035)	23310630055	23310150055

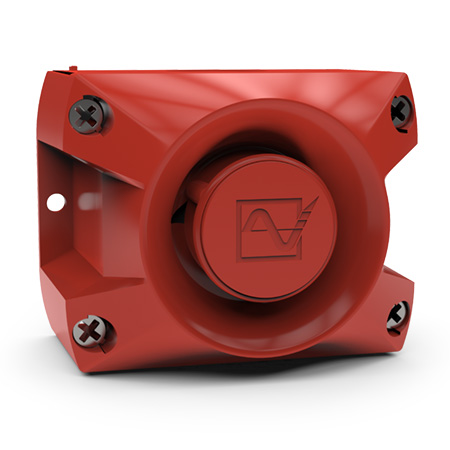

PART NUMBER RED HOUSING (Similar to RAL 3000)	23310630000	23310150000

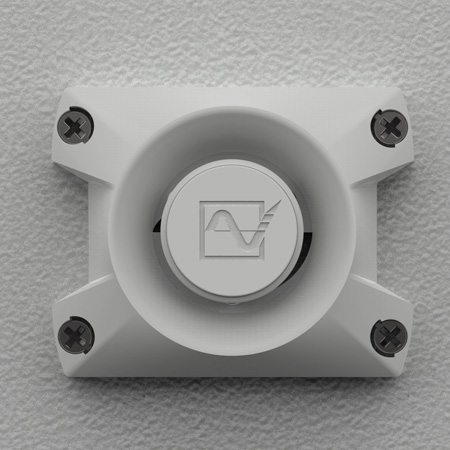

PART NUMBER GREY HOUSING PANEL MOUNT (With install kit)	23310630900	-
NOMINAL CURRENT CONSUMPTION	6-80 mA	9-15 mA @ 230 V
SOUND PRESSURE LEVEL	105 dB (A)
SOUND LEVEL REDUCTION	max. -16 dB via potentiometer
ALARM TONES	80 / 4 tones are externally selectable
OPERATING TEMPERATURE	-40 ... +55 °C
PROTECTION SYSTEM (According to EN 60529)	IP 66
APPROVALS	EN54-3 / VdS / UL / EAC / RS option: GL / MED / CNBOP
W x H x D (mm)	109.5 x 86 x 80.6
