DS 10

DS Series Sounders

114 dB (A) – 31 Tones – 4 Stages

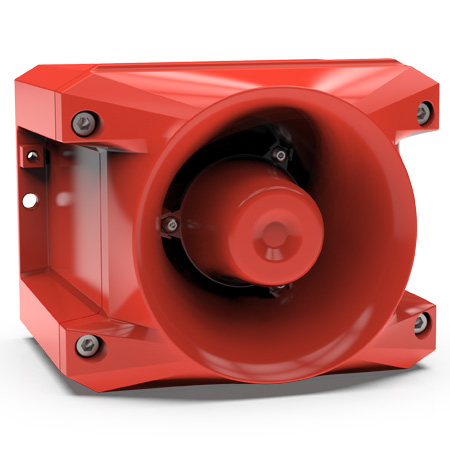

Our DS 10 (IP 66, IP 67) DS Series Sounder reach a 114 dB (A) nominal sound output with 31 alarm tones and 4 stages. This Signaling Device operates in any climate thanks to its cast aluminium housing which withstands impacts and vibrations. Color: Available in Red Housing. 10-Year Warranty

Product Overview

31 alarm tones with 4 stages
Stage programmability
Internal volume control
Horn loudspeaker type tone generator
IP 66, IP 67 cast aluminum housing
5.2 inch (134 mm) h x 5.2 inch (134 mm) w x 5.6 inch (143 mm) d
Certifications: UL, cUL, VdS, EN 54-3, EAC, GL

Additional voltages and colors available. Please click here to contact us for additional options

Features

Die-cast aluminium housing

Resistant to UV light, seawater, and many chemicals. Sturdy construction resists vandalism to ensure a high degree of functional safety.

Selectable audible notification

Choice of 32 unique alarm tones with three stages of tone control for distinctive signalling of specific events.

Strong metal mounting lungs

Ensures a safe and secure installation onto many types of surfaces.

Electromagnetic sound capsule technology

Acoustic signal includes a share of low frequency side bands for excellent sound penetration of walls and doors for highly effective alarming.

IP 66/67 enclosure rating

Suitable for use in all weather conditions due to the provided protection against driving rain, snow, ice, and dust. Withstands hose-directed spray during wash-down requirements.

Stainless steel cable gland

Included to ensure a high degree of electrical connection integrity.

Technical Data Overview

DS SERIES SOUNDERS DS 10	19 to 29 VDC
PART NUMBER	23111800000
NOMINAL CURRENT CONSUMPTION	20 mA
SOUND PRESSURE LEVEL	114 dB (A)
ALARM TONES	32 / 4 tones are externally selectable
OPERATING TEMPERATURE	-40 ... +55 °C
PROTECTION SYSTEM (According to EN 60529)	IP 66, IP 67
MATERIAL	Die-cast aluminium GD-AI Si12 Cu
SURFACE COATING	Epoxy resin paint
CABLE BUSHING	2x M20 (1x chrome-plated brass cable fitting, (1x chrome-plated brass blanking plug)
W x H x D (mm)	133.5 x 133.5 x 143
